| ENGINE POWER |
22 HP 16.4 KW |
| OIL CHANGE |
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| ENGINE MANUFACTURER/MODEL |
44J6 CYCLONIC |
| TRANSAXLE TYPE |
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| TRANSAXLE CONTROL |
TWIN TOUCH PEDALS |
| REAR TIRES |
2010-8 |
| LIFT SYSTEM TYPE |
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| CUTTING WIDTH |
ACCEL DEEP MOWER DECK. 42 IN. 107 CM |
| U.S. WARRANTY |
4 YEAR/300 HOUR BUMPER-TO-BUMPER* (*TERM LIMITED TO YEARS OR HOURS USED. WHICHEVER COMES FIRST. AND VARIES BY MODEL. SEE THE LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT AT JOHNDEERE.COM OR JOHNDEERE.CA/TUWARRANTY FOR DETAILS.) |

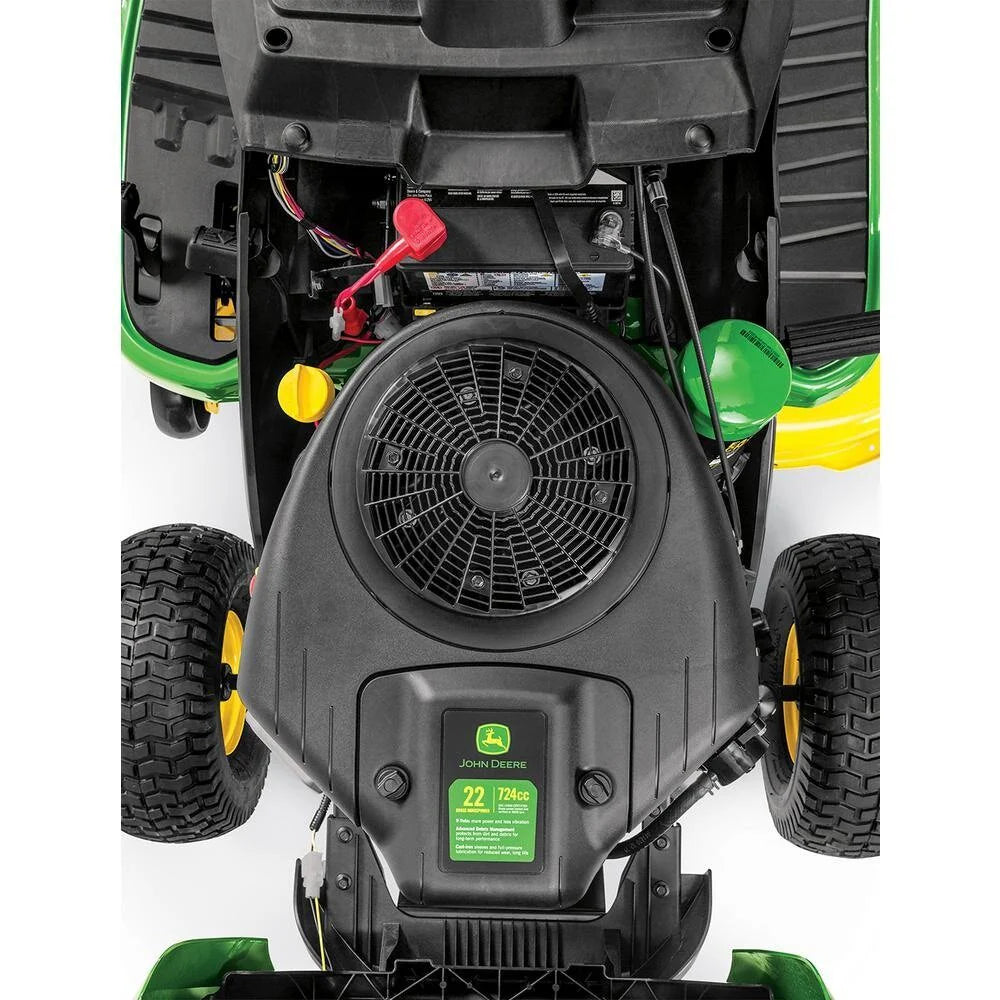

| ENGINE |
|
| POWER |
22 HP 16.4 KW |
| DISPLACEMENT |
44.2 CU IN. 724 CC |
| MANUFACTURER/MODEL |
44J6 CYCLONIC |
| TYPE |
OVERHEAD VALVE. FULL-PRESSURE LUBE. OIL FILTER |
| CYLINDERS |
V-TWIN. CAST-IRON LINERS |
| GOVERNOR |
MECHANICAL |
| CHOKE/SPEED CONTROL |
SEPARATE LEVERS. AUTOMATIC CHOKE RETURN |
| COOLING METHOD |
AIR |
| AIR CLEANER |
DRY. REPLACEABLE |
| OIL CHANGE |
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| FUEL SYSTEM |
|
| TYPE |
GASOLINE |
| FUEL DELIVERY |
PULSE PUMP. CARBURETOR |
| FUEL GAUGE |
GAUGE ON DASH |
| FUEL TANK LOCATION |
REAR |
| FUEL FILL OPENING |
ON LEFT FENDER. 3 IN. 7.6 CM |
| FUEL TANK CAPACITY |
3.3 U.S. GAL. 12.5 L |
| ELECTRICAL SYSTEM |
|
| BATTERY |
12 V 340 CCA |
| CHARGING SYSTEM |
FLYWHEEL ALTERNATOR. REGULATED. 14 AMP |
| ENGINE STARTER |
BENDIX |
| HOUR METER |
YES |
| HEADLIGHTS |
TWO STANDARD. INCANDESCENT. 27 W |
| TAILLIGHTS OR REFLECTOR |
NO |
| BACKUP LIGHTS |
NO |
| REAR WORK LIGHTS |
NO |
| 12-V OUTLET |
OPTIONAL |
| TRANSAXLE |
|
| TYPE |
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| CONTROL |
TWIN TOUCH PEDALS |
| CRUISE CONTROL |
YES. BUTTON ON DASH |
| OIL COOLER |
FINS AND FAN ON TRANSAXLE |
| OIL FILTER |
INTERNAL. NOT REPLACEABLE |
| DIFFERENTIAL LOCK |
NO |
| FORWARD SPEED |
0-5.5 MPH 0-8.9 KM/H |
| REVERSE SPEED |
0-4 MPH 0-6.4 KM/H |
| BRAKES |
INTERNAL WET DISC |
| CHASSIS |
|
| FRAME |
WELDED HEAVY-DUTY |
| PRIMER/PAINT |
E-COAT/POWDER |
| WEIGHT BRACKET |
STANDARD REAR. OPTIONAL FRONT |
| RECEIVER HITCH |
NO |
| FRONT AXLE |
CAST IRON FRONT AXLE. FRONT WHEEL BALL BEARINGS |
| SPINDLE BUSHINGS |
NO |
| FRONT TIRES |
156-6 |
| REAR TIRES |
2010-8 |
| HOOD MATERIAL |
FULLY ENCLOSED. MOLDED-IN COLOR MATERIAL REDUCES SOUND. WILL NOT RUST OR DENT |
| FENDER DECK MATERIAL |
STAMPED STEEL |
| FLOOR MATS |
SURE-GRIP RUBBER |
| STORAGE |
YES. UNDER SEAT AND COVERED TOOLBOX |
| SERVICE INTERVAL DECAL |
YES |
| FENDER HANDLES/GRIPS |
NO |
| CUP HOLDER |
YES |
| EQUIPMENT MOUNTING |
YES. HEAVY DUTY |
| MAXIMUM TOWING CAPACITY |
600 LB 272 KG |
| STEERING |
|
| TYPE |
MANUAL. SECTOR AND PINION |
| FOUR-WHEEL STEER |
NOT AVAILABLE ON THIS MODEL |
| STEERING WHEEL |
LARGE. 14 IN. 35.6 CM |
| TILT STEERING WHEEL |
NO |
| TURNING RADIUS |
16 IN. 40.6 CM |
| UNCUT CIRCLE RADIUS |
26 IN. 66 CM |
| SEAT |
|
| TYPE |
OPEN-BACK DESIGN WITH GRASP |
| SEAT BACK HEIGHT |
15 IN. 38 CM |
| ARMRESTS |
NO |
| FORE-AFT ADJUSTMENT |
WHILE SEATED. BALL BEARING SLIDE RAIL. 15-POSITION. 6.6 IN. 17 CM |
| SEAT SUSPENSION |
TILT. TWO COIL SPRINGS. THREE-POSITION NO-TOOLS ADJUSTMENT FOR OPERATOR WEIGHT |

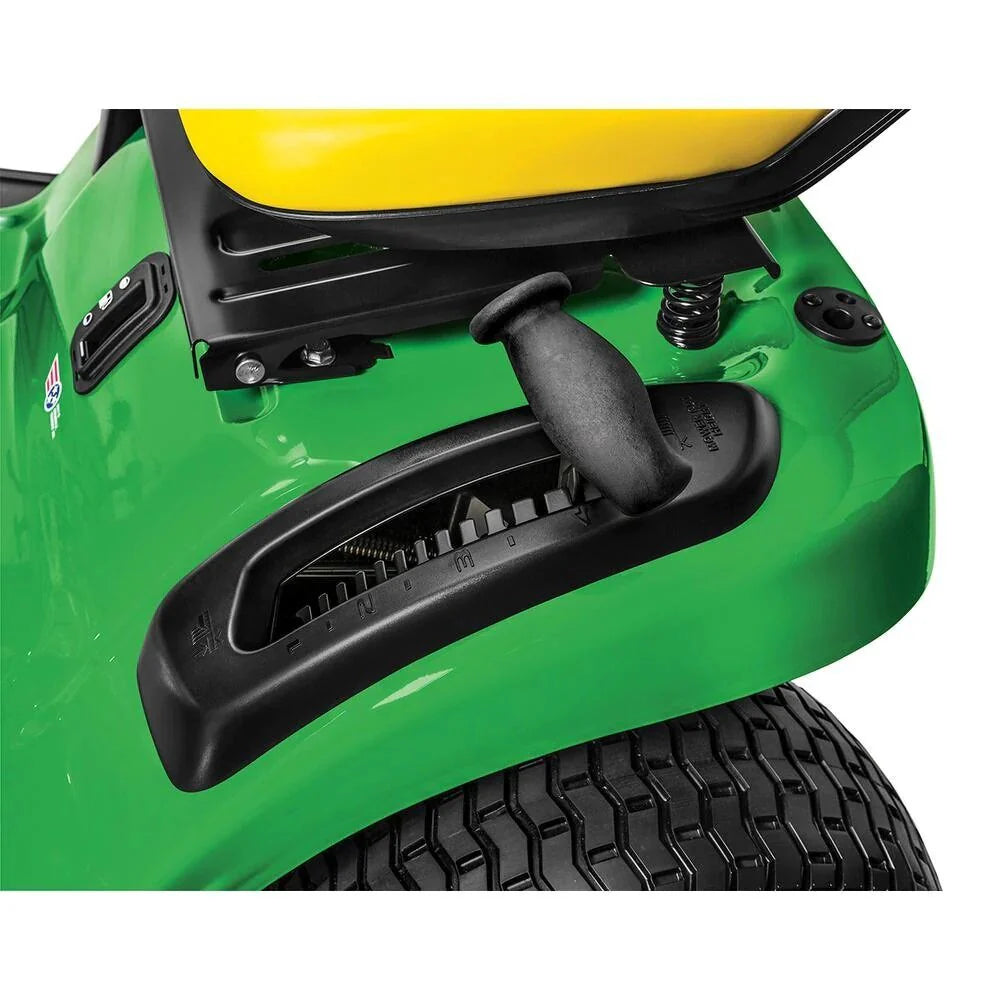

| LIFT SYSTEM |
|
| TYPE |
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| HYDRAULIC OUTLETS |
NO |
| MOWER CUT HEIGHT |
13 POSITIONS. 1-4 IN. 2.5-10.2 CM |
| CUT HEIGHT INCREMENTS |
0.25 IN. 0.64 CM |
| PRESET CUT HEIGHT |
YES |
| MOWER DECK |
|
| TYPE |
SIDE DISCHARGE |
| CUTTING WIDTH |
ACCEL DEEP MOWER DECK. 42 IN. 107 CM |
| CONSTRUCTION |
STAMPED STEEL DECK SHELL |
| MOWER DECK MATERIAL |
12 GAUGE 0.105 IN. 2.7 MM |
| MOWER WASH PORT |
YES |
| MOWER DRIVE SYSTEM |
ELECTRIC POWER TAKE-OFF (PTO) CLUTCH. IN-LINE BELT |
| MOWER WHEELS |
TWO |
| MOWER WHEEL ADJUSTMENT |
FOUR-POSITION. TOOL REQUIRED |
| MOWER LEVEL ADJUSTMENT |
EXACT ADJUST PORTS AND ONBOARD DECK-LEVELING GAUGE |
| MOWER ATTACHABILITY |
|
| TYPE |
SLIDE UNDER TRACTOR |
| |
|
